V-Ultra

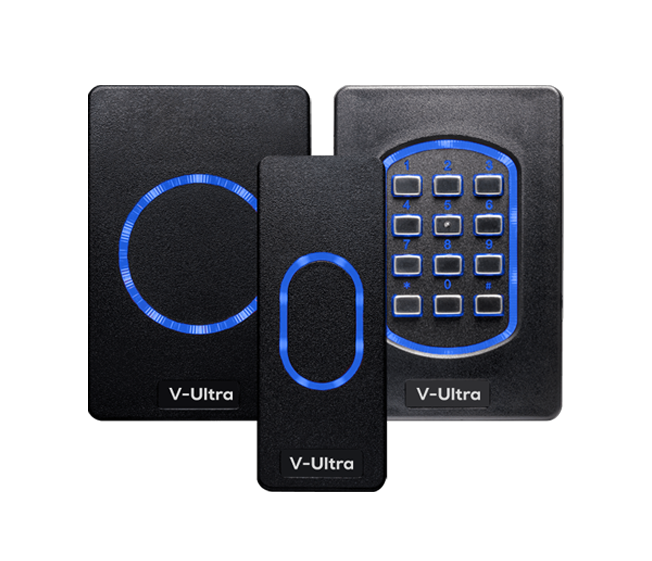

V-Ultra readers read all Mifare® IDs and can be adapted to your security needs in three versions:

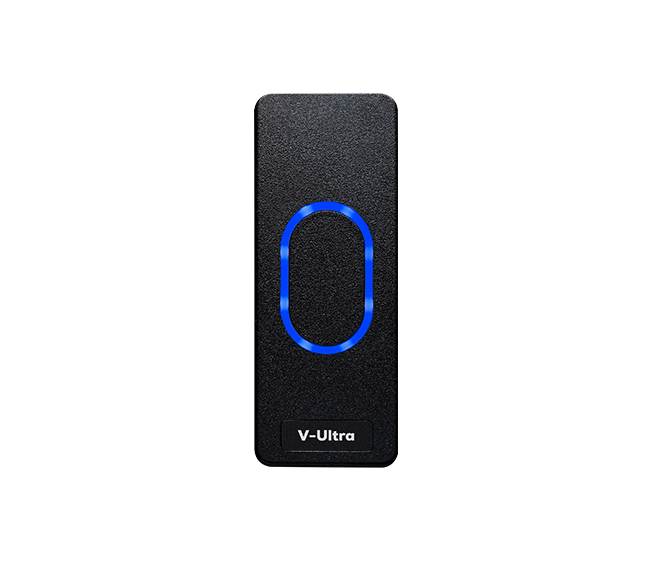

> V-Ultra Slim

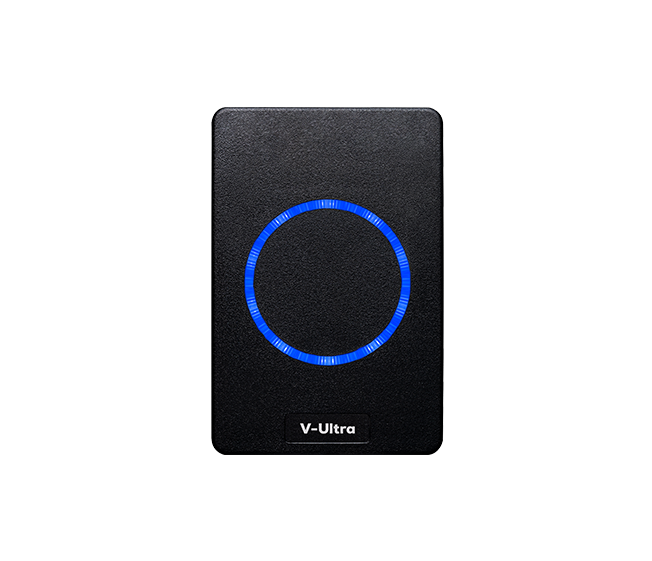

> V-Ultra Large
> V-Ultra KP with keypad.
Key
FEATURES
- Simplified installation
- Ultra-resistant: IK10 certified, patented anti-tear system
- Compatibility: MIFARE CLASSIC, MIFARE DESFIRE, smartphones with virtual badge (green)
- STid Mobile ID via Bluetooth V-READER reader
- Highly secure: MIFARE DESFIRE private ID (V-BADGE and V-FOB)
- Lifetime warranty
Technical specifications
- Power supply: 6 to 16 VDC
- Average power consumption at 13.6V: see product sheet for more details
- Transmission frequency: 13.56 MHz - ISO14443 A, ISO15693, ISO18092 (NFC)
- Communication interface: Wiegand
- Connection distance: maximum 100 m between the Verso+ / Vext4+ module and the reader
- Dimensions: » Slim reader: 117 x 43 x 28 mm »/Large and KP readers: 117 x 78 x 28 mm
- Mounting: Surface-mounted on wall or electrical boxes with center-to-center spacing of 60 and 62 mm (except narrow reader). On any type of surface, including metal, without spacers
- Materials: Black polycarbonate, UL 94 • Impact resistance: IK10
