Power stations
TCP/IP control unit with 1, 2, or 4 programmable readers
Power stations
VERSO+ range

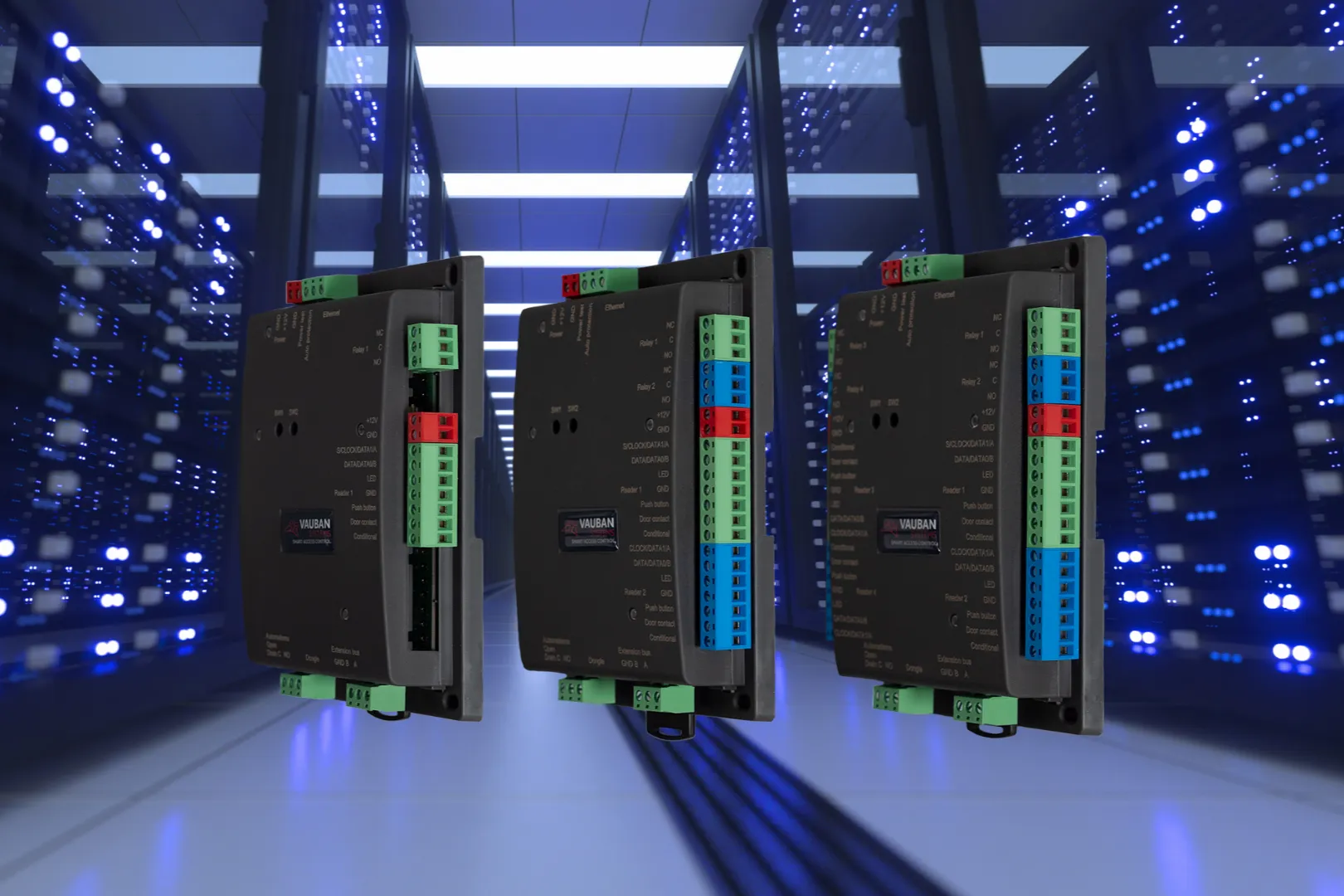

TCP/IP control unit with 1, 2, or 4 readers programmable with Visor® supervision software or with its embedded web server.
Key
FEATURES
- Quick and easy to install: installs via its power supply box or can be mounted
on the included DIN rail. - 1 control unit, 2 solutions: can be used with VISOR® and V.WEB supervision software, its embedded web server
- Available with 1, 2 (up to 2 doors) or 4 readers (up to 4 doors)
- Installation assistance through color-coded terminal identification and detachable connectors
- Connects via IP and is upgradeable through RS485 BUS extensions (V-EXT4+, V-EXT IO+)
Technical specifications
> Encrypted communication with VISOR using AES128
> Up to 50,000 identifiers
> Multiple identifiers (possibility of having several identifiers per user)
> Backup of the last 15,000 Fifo events
> Configuration backup via SD card
> Works online and offline
> Easy connection to the entire door environment (readers, locks, push buttons, opening detectors, etc.)
> 128 time slots/64 automatic functions/24 access groups
> 3 security levels
> Power consumption: 300mA
> Supply voltage: 9-14 V DC
> Operating temperature: 0°C to 50°C
> VERSO+l: 2 CRT lA relay outputs
> VERSO+2: 3 CRT lA relay outputs
> VERSO+4: 5 CRT lA relay outputs
